Introduction
▷Floating lid / variable capacity wine tanks
with floating lid on the topautomatic type or manual type top
oval or rectangular manhole on the side
with boat winch, lid sealWith rope wrapping device, rotating arm device, gasbag etc.
with cooling jacket on the body
racking valve for wine outlet
sample valve
with sanitary connections
cleaning pipes
liquodmeter
breath valve on the top
drain valve on the bottom
customized as your actual space and your special requirement
No
material
Size
Cooling
Ref. Size
Thickness
Bottom shape
Remark
1
304
1m³
2m³
φ1100*2200
t2.0mm
Slop Flat Bottom
atmospheric
2
304
1.5m³
2.4m³
φ1300*2200
t2.0mm
Slop Flat Bottom
atmospheric
3
304
2m³
4m³
φ1300*2600
t2.0mm
Slop Flat Bottom
atmospheric
4
304
3m³
5㎡
φ1600*2600
t2.0mm
Slop Flat Bottom
atmospheric
5
304
5m³
5㎡
φ1600*3500
t2.5mm
Slop Flat Bottom
atmospheric
6
304
5m³
5m³
φ1900*3000
t2.5mm
Slop Flat Bottom
atmospheric
7
304
6m³
5.5㎡
φ1770*3500
t2.5mm
Slop Flat Bottom
atmospheric
8
304
7.5m³
6.2㎡
φ2000*3500
t2.5mm
Slop Flat Bottom
atmospheric
9
304
8m³
6.4㎡
φ2050*3500
t2.5mm
Slop Flat Bottom
atmospheric
10
304
10m³
9.8㎡
φ2100*4400
t2.5mm/3mm
Slop Flat Bottom
atmospheric
11
304
12.5m³
13㎡
φ2100*4900
t2.5mm/3mm
Slop Flat Bottom
atmospheric

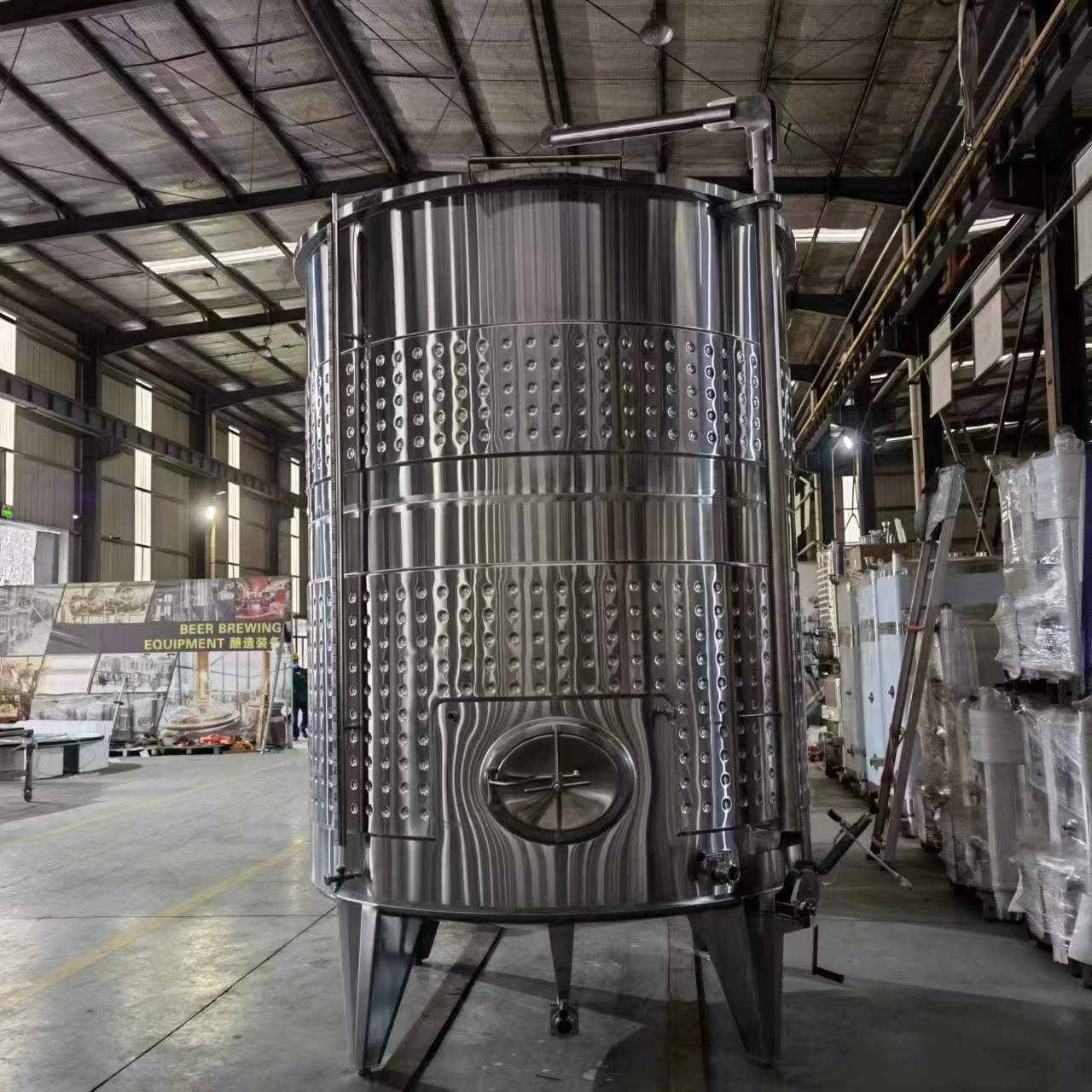

▷Wine tanks with dimple cooking jacket
Dimple cooling jacket on the bodysingle stage or double stages cooling
top manhole and side manhole
with thermometer on body
wine outlet with clamp connection or thread connection
sieve mesh inside for red wine
▷Wine tanks with cooling belt
cooling belt on the body
single stage or double stages cooling
top manhole and side manhole
with thermometer on body
wine outlet with clamp connection or thread connection
sieve mesh inside for red wine
