I. Line Configuration

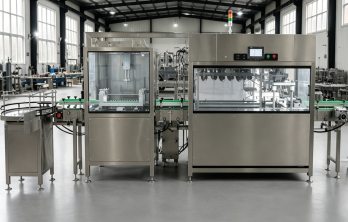

The complete line consists of a can washer, an integrated filling and sealing machine, a can sealing unit, and associated conveyors.

II. Line Operation Overview

→ Manual placement of cans onto the conveyor.

→ Conveyance into the can washer for cleaning.

→ Conveyance into the integrated filling and sealing machine for oxygen purging, filling, and sealing.

→ Conveyance of the filled cans.

III. Technical Specifications

Applicable Can Sizes: 330ml, 500ml, 1000ml (customizable)

Cleaning/Filling Stations: 4/6/8/10/12

Production Capacity: Approx. 300–800 cans/hour

Filling Accuracy: ≤10g

Cleaning Method: Inversion (upside-down)

Filling Method: Upright filling

Rated Power: 3kW

Rated Voltage: AC 380V, 50/60Hz

IV.

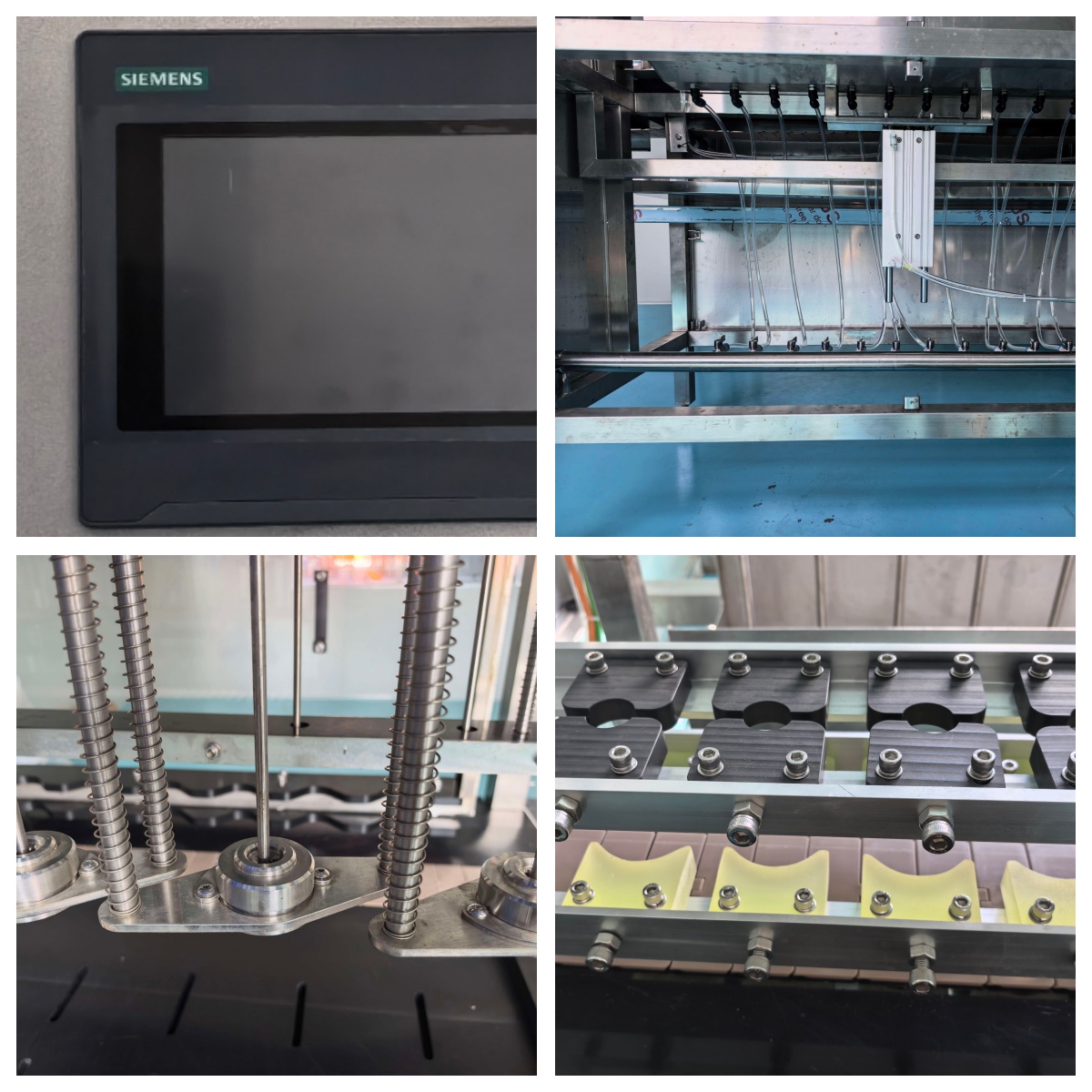

1.Automation: PLC and PID touch-screen control with one-button start, covering automatic can feeding, filling, conveying and stop for unattended production.

2.Filling Precision: High-accuracy filling valves deliver consistent fill volume with minimal overflow, cutting product loss and improving yield.

3.Hygiene Design: Integrated CIP cleaning circuit and sanitary welded piping keep the line clean and safe for food and beverage production.

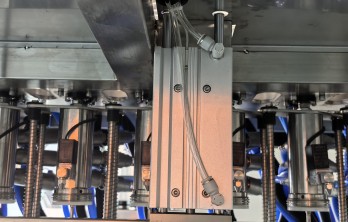

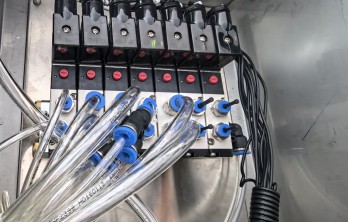

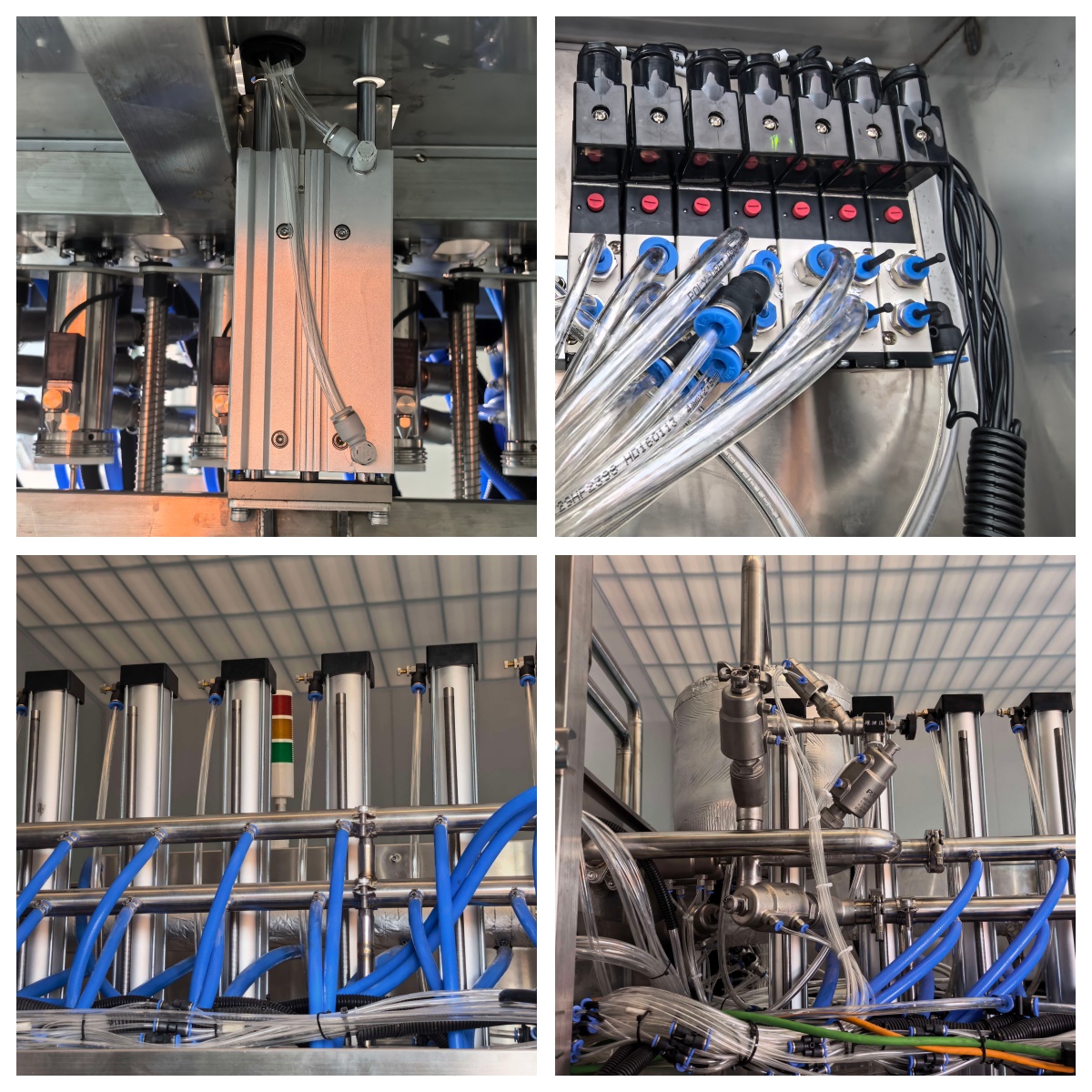

4.Stable Drive: Precision pneumatic cylinders with solenoid valve manifolds ensure smooth, repeatable actuation for dependable long-term operation.

5.Flexible Config: Modular line layout supports quick changeover across can sizes, capacities and beverage types to match market demand.

6.Turnkey Service: Complete line layout planning, installation guidance and OEM/ODM customization available to fit your production floor.
