▷Working process:

Fix the keg ---Start -- Co ₂ pressurization -Filling-- stop-- Take the keg

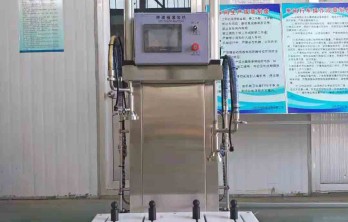

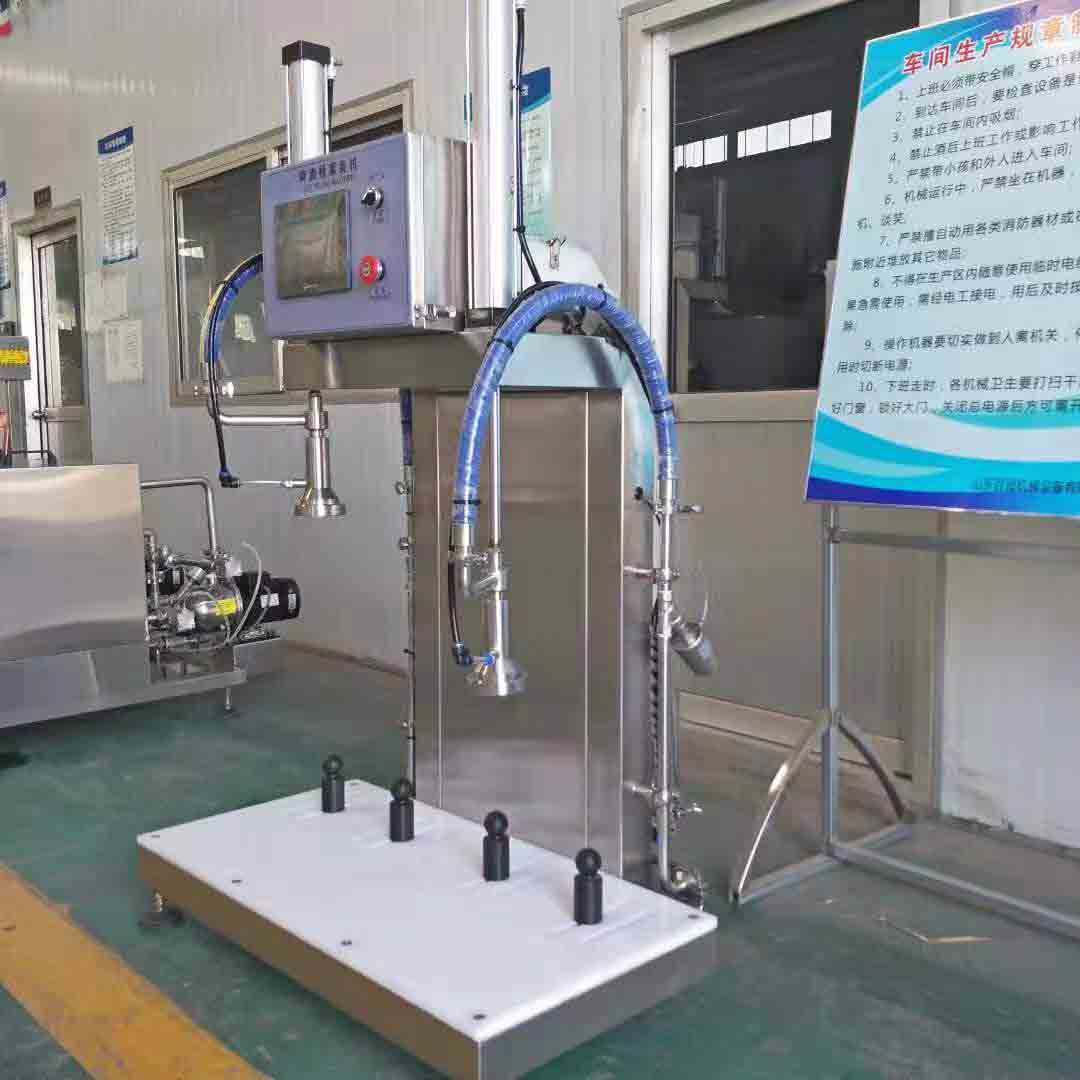

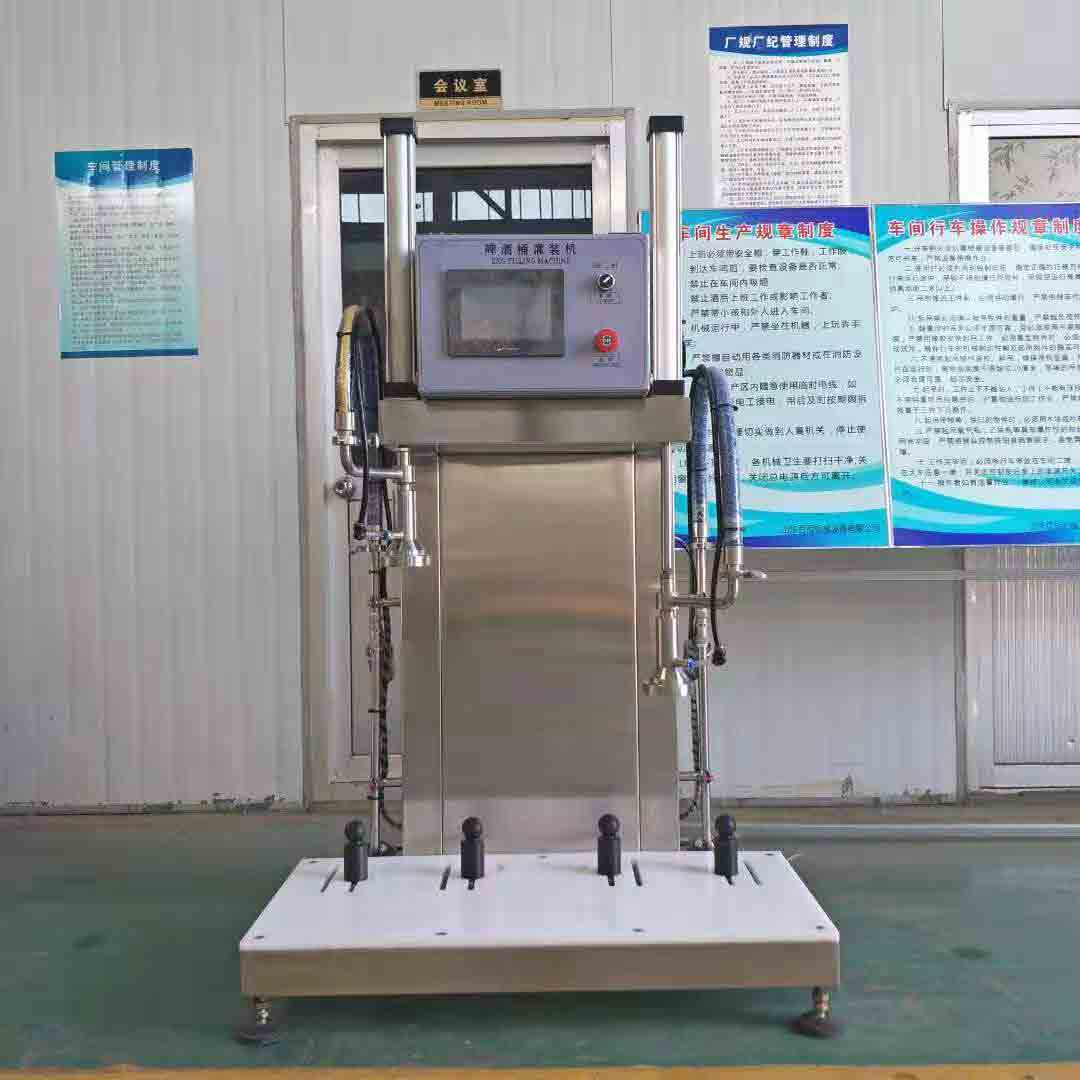

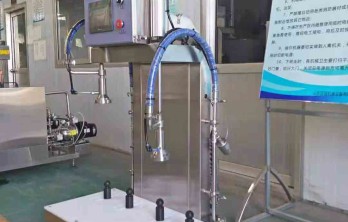

▷Double Head Keg Filler

Siemens Control system

Power :120W

Net Weight:65kg

Size:1200*575*11500mm

Capacity:80-120kegs/hour

Filling Method: keg Topside up

Applicable Kegs:Keg with Diameter 250-400mm,  Height 410-650mm

Voltage:AC 220V 50HZ ( customized)

▷Main function and feature

1、All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted without stopping the machine.

2. Two filling stations with separate control systems.

3. Pressure maintaining system performance is stable and reliable, to make sure the lowest beer loss compared to other similar products.

4. Could fill the kegs with different volume directly, and do not need to adjust any parameter

5. Equipment with CIP circumfluence pipe, very easy operation.
