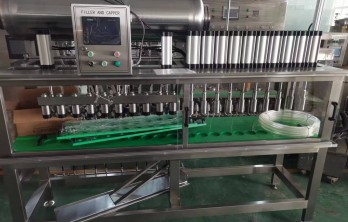

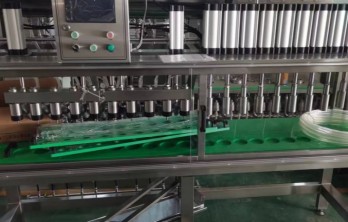

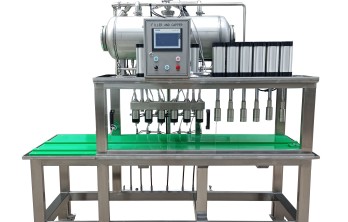

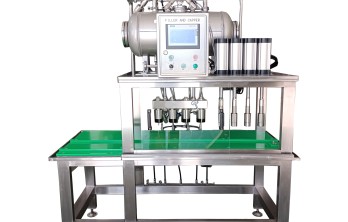

Semi-auto beer filler bottle capper machine with 4 heads

▷Function:  Bottle Filler & Capper

Packaging Outer Dimensions: 1800*800*2400mm

Net Weight :300KG

Production Capacity :300-600 bottles/Hr

Applicable Bottles: 330ml-2L

Working Stations :customized

Power Supply Voltage :customized

Siemens Control system with touch screen

▷Working process:

 Fix the bottles--CO2 pressurizing--vacuumizing--CO2 pressurizing--filling--pressure stabilization--pressure relief--stop--move

the bottles to the capping stations--capping---take the bottles.

▷Main function and feature

1.Automatic control by PLC, all parameters can be adjusted.

2.Filling and capping process can be finished in this machine  at one time.

3.With CO2 pressurization and vacuumization function.

4. Adopt isobar filling method and with unique pressure maintaining system, performance stable and reliable, beer  loss minimum.

5. With pressure compensator, to guaranntee  a stable filling process.
