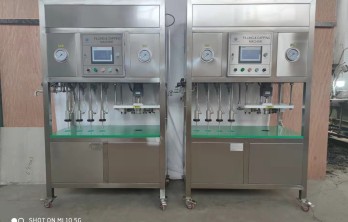

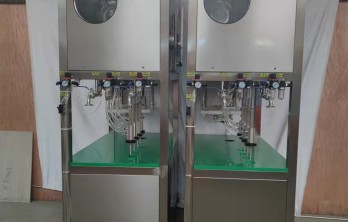

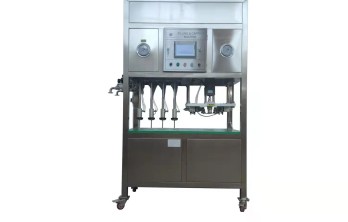

Semi-auto beer cans filler and capper machine

▷Specification:

Machine Size:1285mm*650mm*1980mm

Packing size:1420mm*720mm*2150mm

Net weight :155kg

Gross weight:233kg

Filling method: Upright filling

Capacity:300-400 cans/h

voltage: 3phase 380V 50Hz or customized

Beer loss:5＜‰

Buffer tank capacity:25L

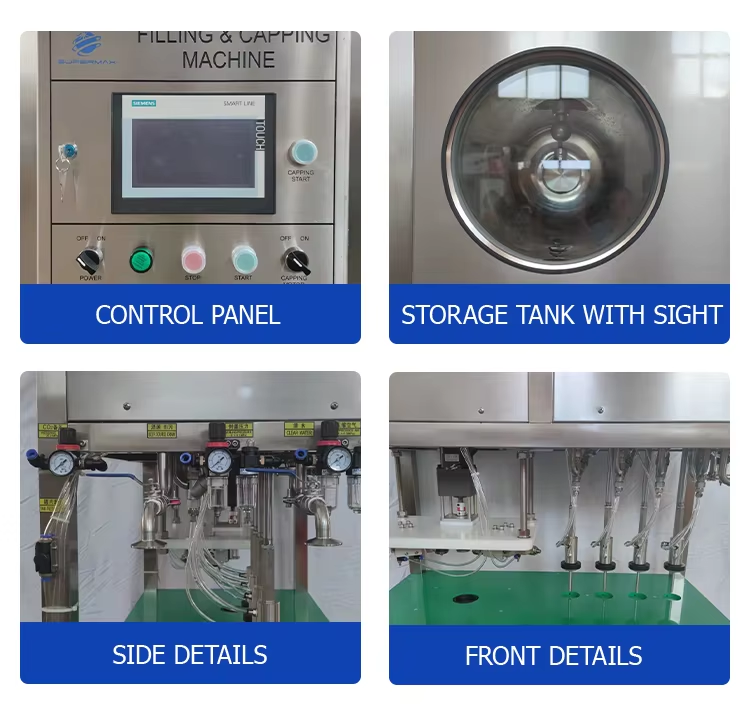

Buffer tank : with goggles at both ends

Total power:300W

Beer pressure:0.12～0.15Mpa

Air pressure:≥0.5Mpa

CO2 pressure：≥0.2Mpa

Cylinder valve pressure:0.4～0.5Mpa

CO2 filling pressure valve pressure:0.1～0.15Mpa

Cleaning water pressure:0.3～0.4Mpa

▷Main features:

1, programmable controller whole process automatic control.

2, PLC adopts Germany Siemens.

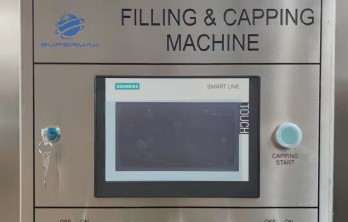

3. Adopt 7-inch touch screen.

4, according to customers to provide bottle type (330/500/1LPET/1.5LPET/1L tinplate, etc.)

5. All parameters can be modified without shutdown.

6, The filling machine buffer tank into the wine and CO2 standby pressure automatic control.

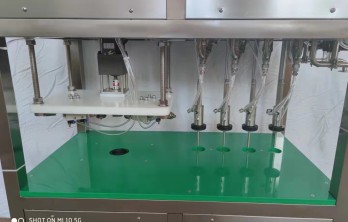

7, the equipment filling area operation with automatic and manual control procedures.

8, equipment wine loss can be ignored, the filling amount is consistent.

9, the highest output of similar equipment.

10, with automatic CO2 pressure standby function.
