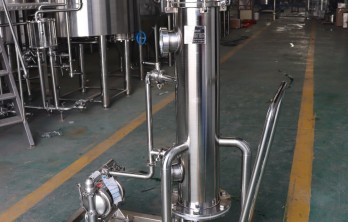

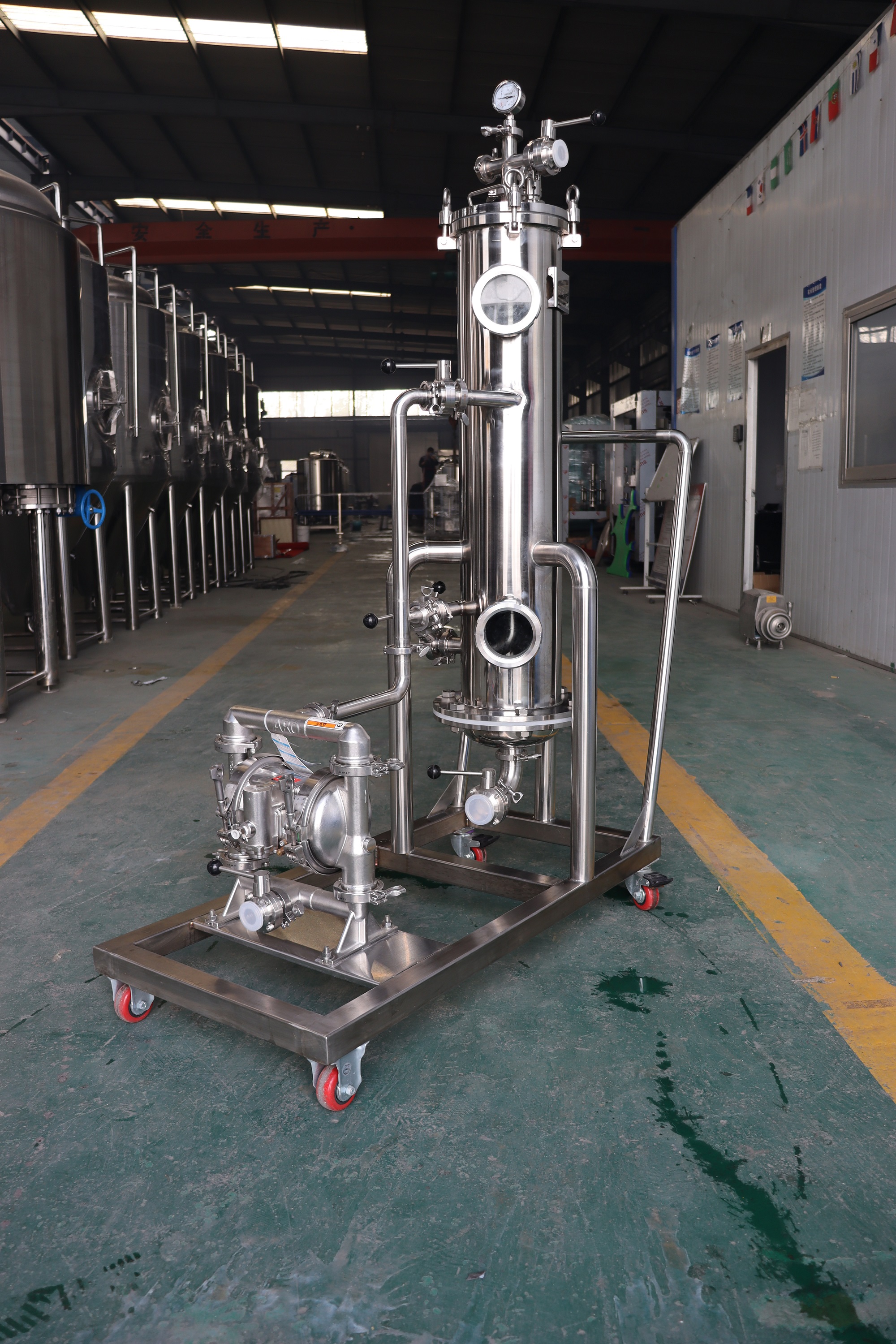

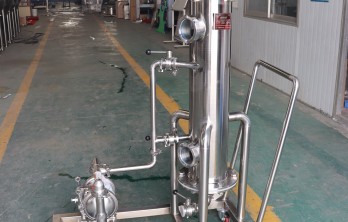

Product Name: Beer Hop Gun / Hop Cannon / Dry Hop Addition Tank

Material: SUS304 or SUS316L, food-grade, mirror polish Ra ≤ 0.8 μm (interior)

Usable Volume: 50 L / 80 L / 100 L / 150 L / 200 L / 300 L / 500 L (custom)

Design Pressure: 2 bar / 3 bar (29–43 psi), pressure-relief valve equipped

Working Pressure: 0.5–2 bar CO₂ head pressure

Inlet / Outlet: 1.5" / 2" / 3" Tri-Clamp, DN32–DN50 butterfly valve optional

Hop Filter: Candle / wedge-wire screen, 80–200 μm (pellet-retention)

CO₂ Purge Port: Yes, with gas regulator & check valve

Sight Glass: 1–2 pcs pressure-rated sight glasses

CIP System: Top rotary spray ball, full drain, CIP/SIP compatible

Temp. Range: 0–25 °C (cold-side), optional glycol jacket for 0–10 °C

Pump Match: Sanitary centrifugal or diaphragm pump (not included / optional)

Surface Finish: Inner 2B or mirror; outer brushed 304

Legs / Frame: Mobile frame with casters or fixed legs

Standards: FDA food contact, ISO welding, optional PED / CE

Voltage (auto model): 220V / 380V / 415V, 50/60Hz (if with pump & PLC)
