▷Advantages :

1. 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China

2. The cooling efficiency of Maitreya plate jacket is greatly improved.

3. Two stage cooling mode.

4. The insulation layer material is high-grade polyurethane with a thickness of 80mm.

5. Polishing accuracy up to Ra0.4μ m.

6. Strict tank pressure test.

7. Energy conservation and pollution emissions.

▷Specification:

1. The main material is the SUS304 stainless steel;

2.Standard model:10000L;

3.Top is stainless steel dished head, bottom is 60°conical design, easy to discharge yeast, 100% TIG welding, clean and polish;

4. Design pressure of 0.2MPa, the test pressure 0.4 MPa;

5. 3-4 stainless steel leg, height and level can be adjusted;

6. Inner jacket thickness 3mm, insulation is Polyurethane (PU),thickness 60-100mm, outer jacket thickness 2mm;Cleaning the inner surfaces, polished to 0.4um;

7. Configure the appropriate standard models sanitary clamp type connector according the tank;

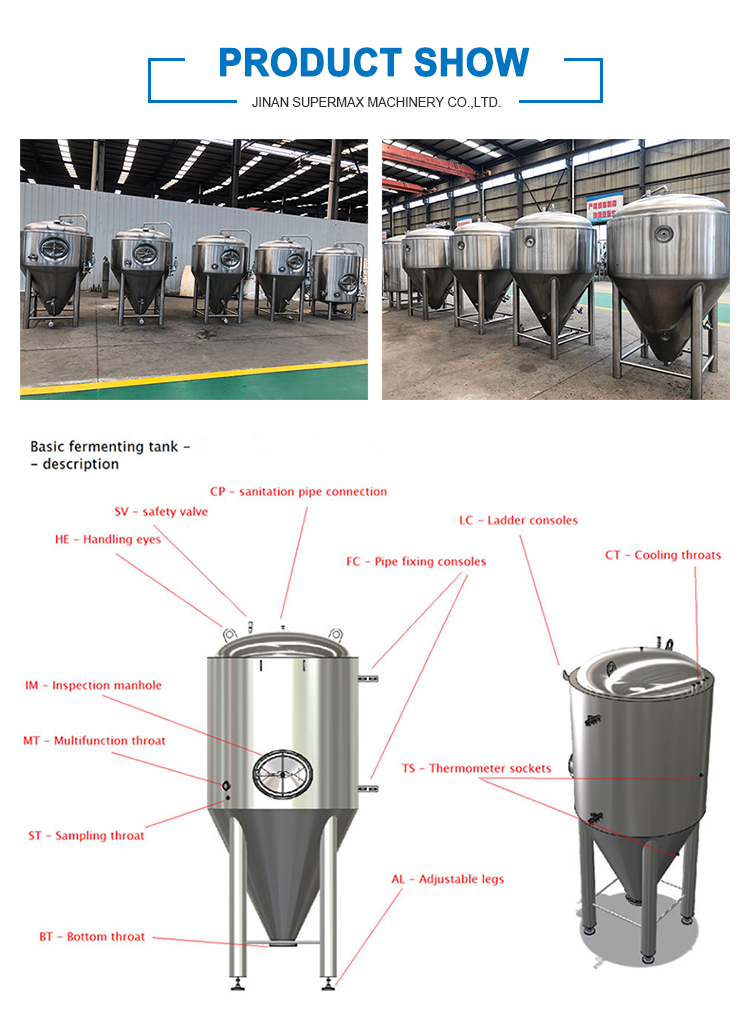

8. Configuring the vacuum valve/pressure relief valve, pressure gauge, thermometer, sampling valves, lifting lugs, side or top manhole, 360 °CIP ball;

9. Double glycol inlet and outlet, dimple jacket for cooling;

10. Racking arm for beer outlet;

11. Standard clamp-type hops adding port

12.Electronic thermometer sensor connector.
