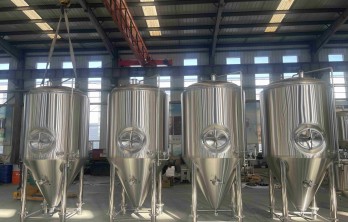

The fermentation tanks use certified stainless steel material. All tanks and jackets inspected and pressure tested to 3 times operatiing pressure. The dimension of the tanks can be designed according to customer's requirement. Tank design pressure is 0.4Mpa and testing pressure is 0.3Mpa.

▷Advantages :

1. 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China

2. The cooling efficiency of Maitreya plate jacket is greatly improved.

3. Two stage cooling mode.

4. The insulation layer material is high-grade polyurethane with a thickness of 80mm.

5. Polishing accuracy up to Ra0.4μ m.

6. Strict tank pressure test.

7. Energy conservation and pollution emissions.

▷Specification:

1. The main material is the SUS304 stainless steel;

2.Standard model:100L-10000L;

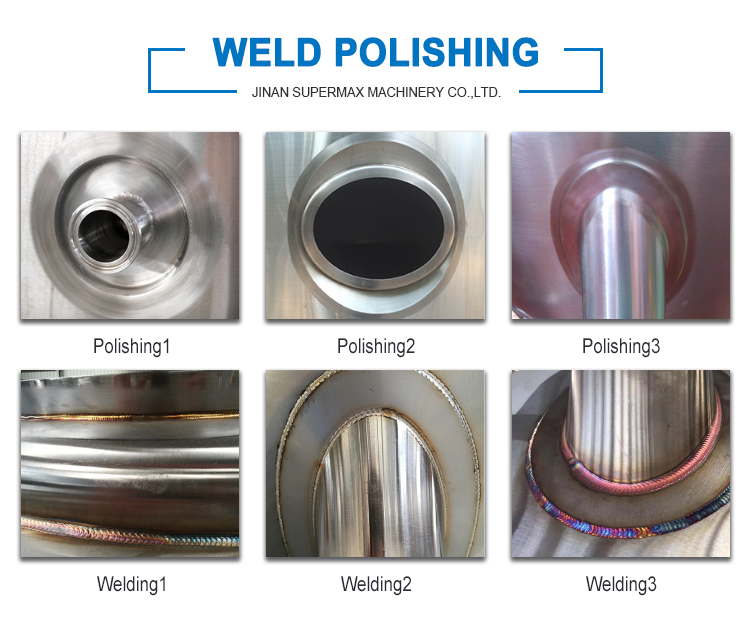

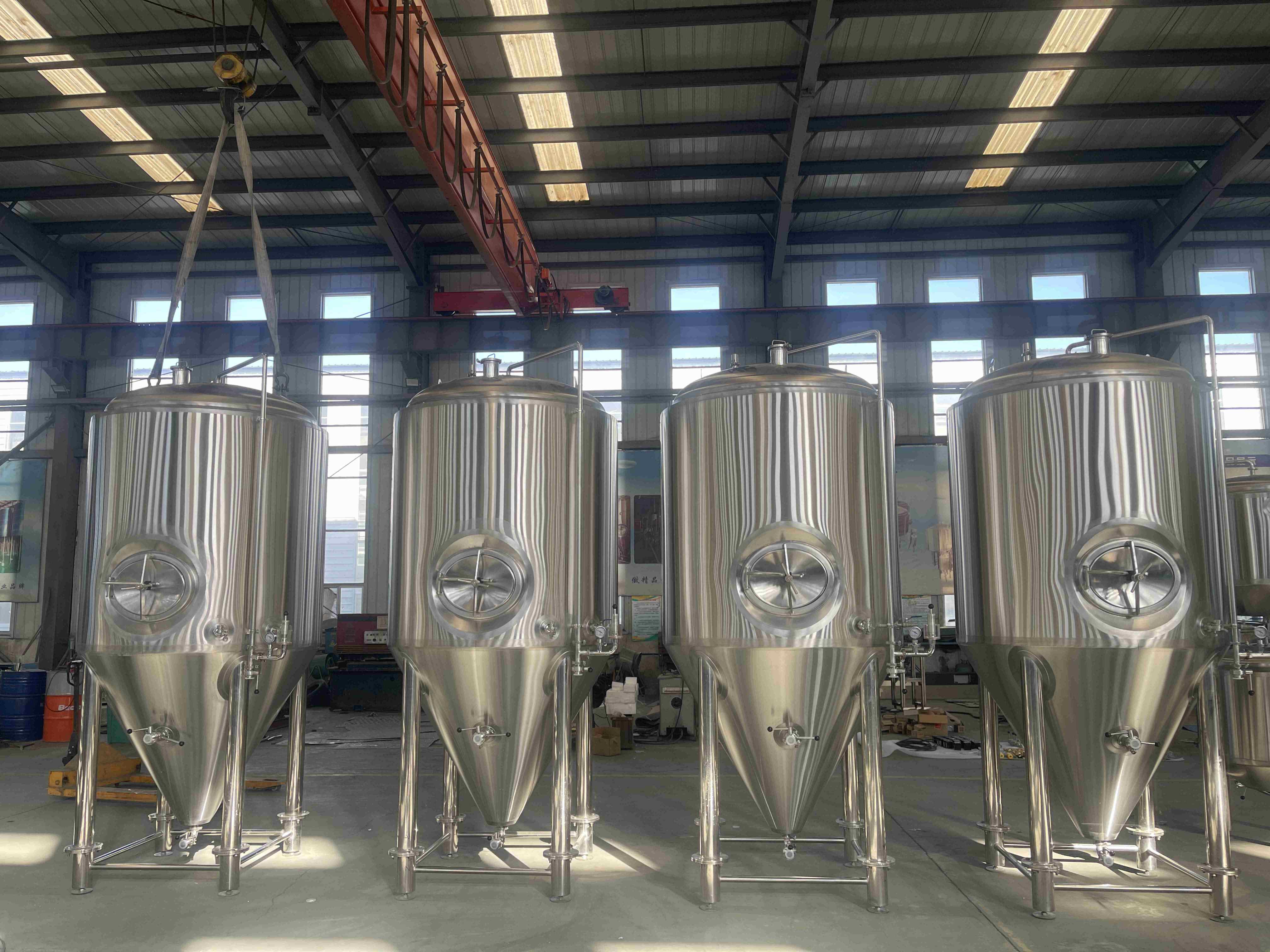

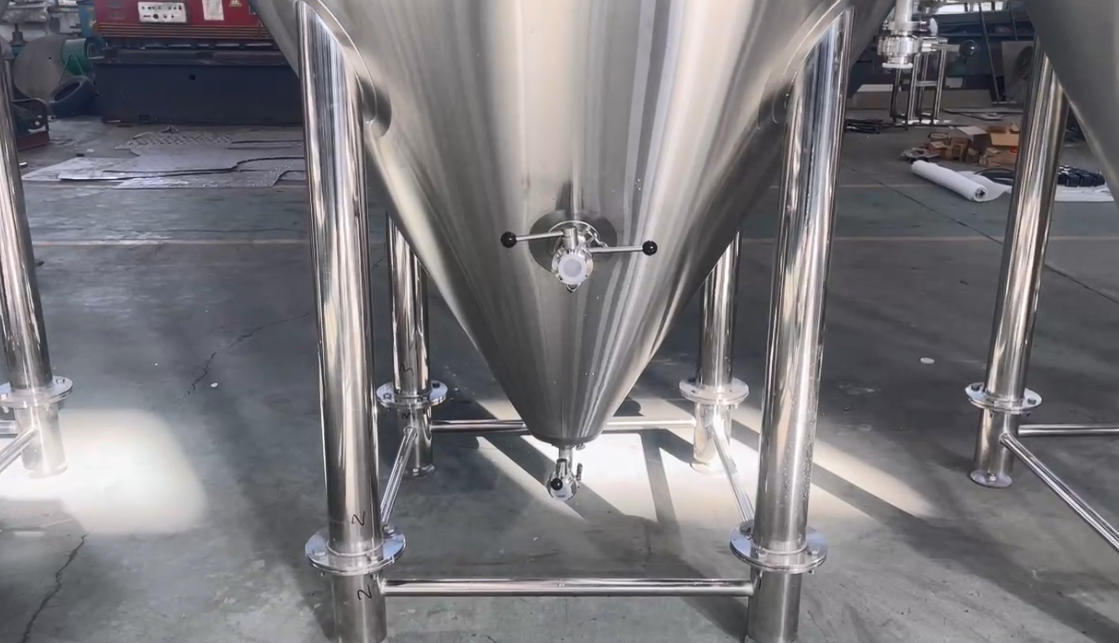

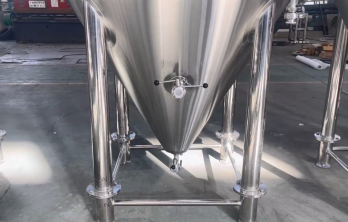

3.Top is stainless steel dished head, bottom is 60°conical design, easy to discharge yeast, 100% TIG welding, clean and polish;

4. Design pressure of 0.2MPa, the test pressure 0.4 MPa;

5. 3-4 stainless steel leg, height and level can be adjusted;

6. Inner jacket thickness 3mm, insulation is Polyurethane (PU),thickness 60-100mm, outer jacket thickness 2mm;Cleaning the inner surfaces, polished to 0.4um;

7. Configure the appropriate standard models sanitary clamp type connector according the tank;

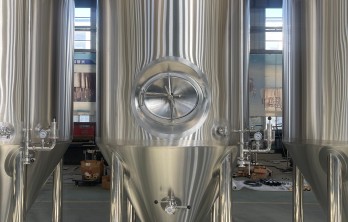

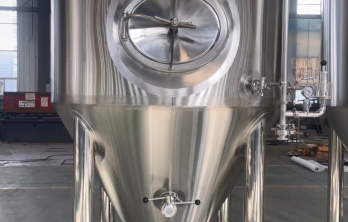

8. Configuring the vacuum valve/pressure relief valve, pressure gauge, thermometer, sampling valves, lifting lugs, side or top manhole, 360 °CIP ball;

9. Double glycol inlet and outlet, dimple jacket for cooling;

10. Racking arm for beer outlet;

11. Standard clamp-type hops adding port

12.Electronic thermometer sensor connector.

▷Fermenters are used in the environment

Our beer fermentation tanks are the perfect piece of equipment for any brewery or home-brewer looking to brew high-quality, great-tasting beer.

Made entirely from stainless steel 304, these tanks are designed to deliver superior performance and durability

One of the key features of our beer fermentation tanks is their internal surface, which is highly polished to a mirror-like finish.

This makes it easier for yeast to settle, ensuring that your beer develops the desired flavor and aroma, and also makes cleaning the tank a breeze.

Another unique feature of our tanks is the addition port on top, which allows you to add hops to your beer.  This is an especially useful feature for those looking to make India Pale Ale (IPA), which requires a significant amount of hops to achieve its distinct taste.

In addition, our fermentation tanks have the ability to inject CO2 into the tank, which helps to speed up the fermentation process and ensure that the beer remains at the right temperature.  The sequestration of carbon dioxide from the fermentation process also ensures that the beer remains carbonated during storage and delivery.

For extra convenience, our fermentation tanks have been designed with separate cooling jackets for the cylinder and the cone.  This allows for efficient heat exchange and ensures that energy is saved during the cooling process.
