The fermentation tanks use certified stainless steel material. All tanks and jackets inspected and pressure tested to 3 times operatiing pressure. The dimension of the tanks can be designed according to customer's requirement. Tank design pressure is 0.4Mpa and testing pressure is 0.3Mpa.

▷Advantages :

1. 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China

2. The cooling efficiency of Maitreya plate jacket is greatly improved.

3. Two stage cooling mode.

4. The insulation layer material is high-grade polyurethane with a thickness of 80mm.

5. Polishing accuracy up to Ra0.4μ m.

6. Strict tank pressure test.

7. Energy conservation and pollution emissions.

▷Descriptions:

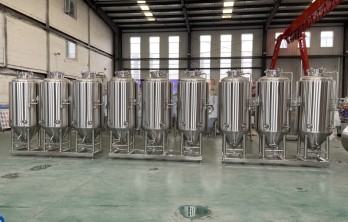

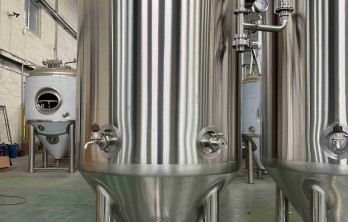

Fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermentor or unitank as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

Supermax stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as pressure relief valve, CIP cleaning jet, sanitary sample valve, manhole,etc. The design of Tiantai fermenter is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.


▷Standard Configuration:
Function Wort Fermentation or maturation
Tank Capacity: 500L (+25% Headspace minimum)
Dimension:1010mmx2100mm
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm

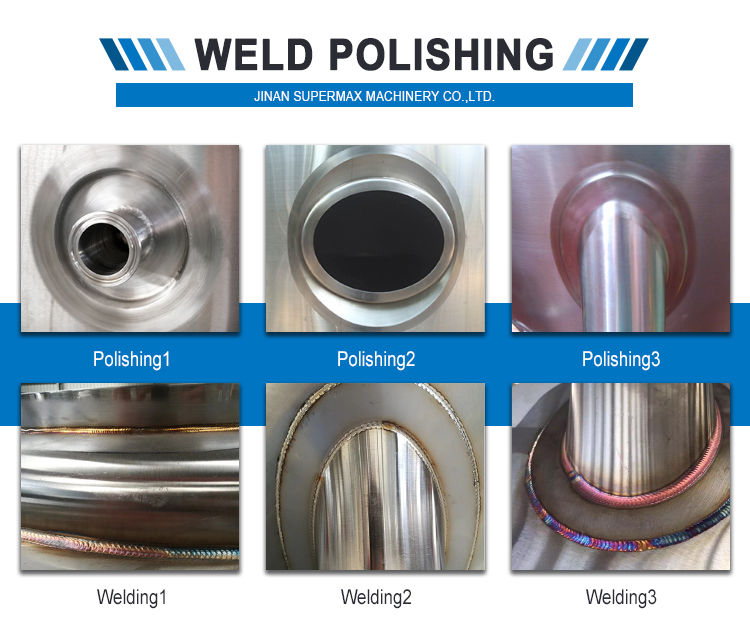

100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 mm without dead corner
Insulation: ▷Polyurethane; TH=80mm
Glycol Jacket: Dimpled plate on cone and side
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas

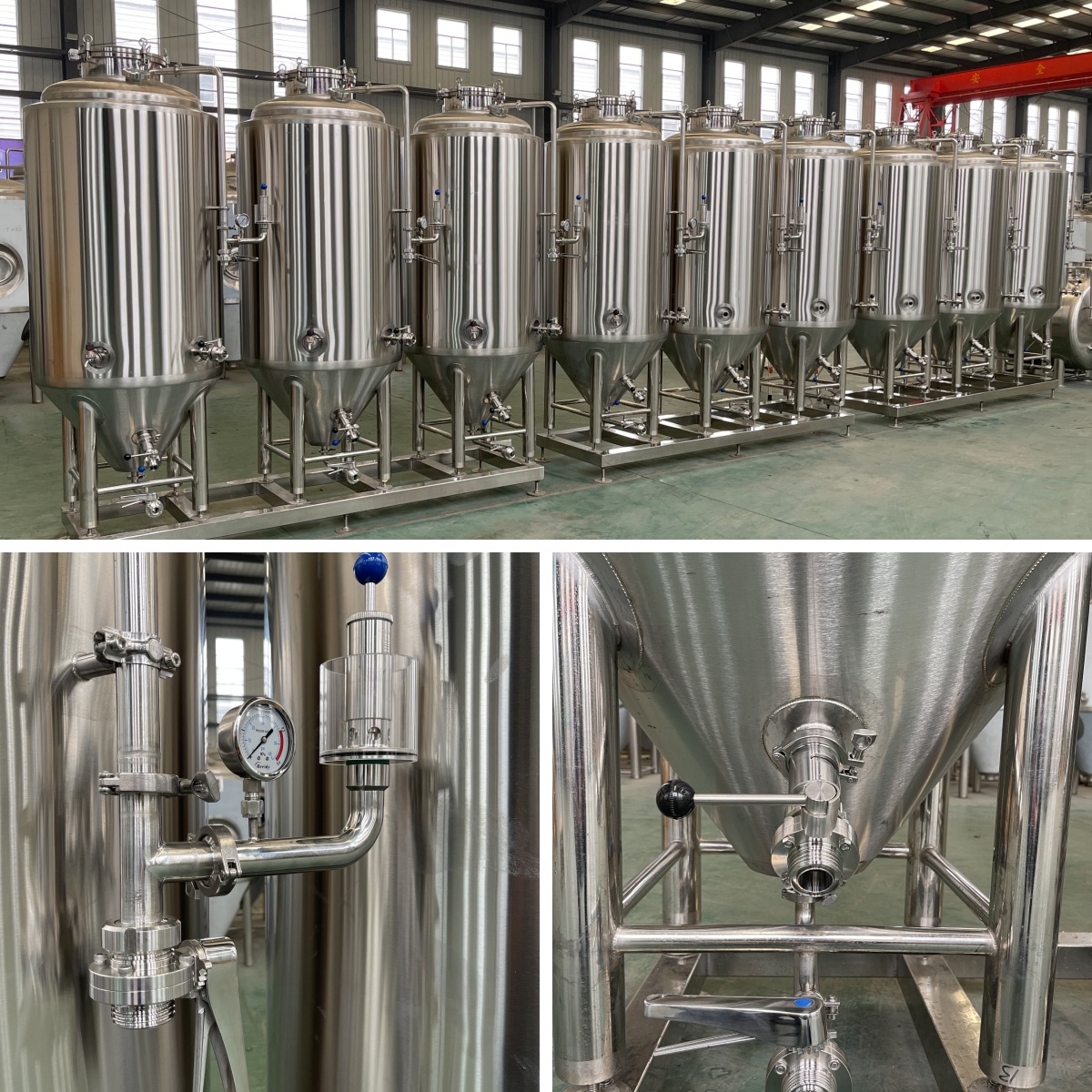

Dished head and 60 degree cone bottom
Sanitary top mounted manway
CIP arm with 360° coverage CIP spraying ball
Full sanitary sampling valve

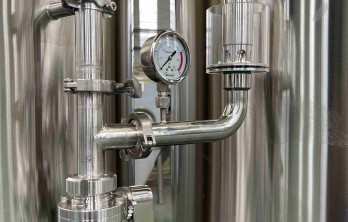

Mechanical relief valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
3pcs completely SUS304 heavy duty legs with leveling pad and legs support
Complete valves, fittings and all parts
Level tube for special request
Carbonation port and stone for special request
