Fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermentor or unitank as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

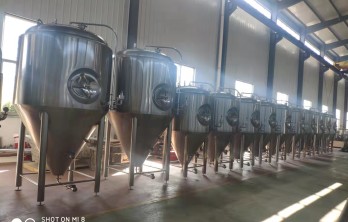

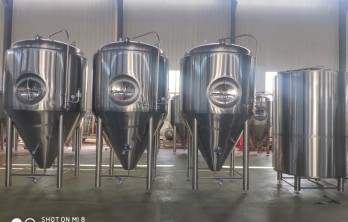

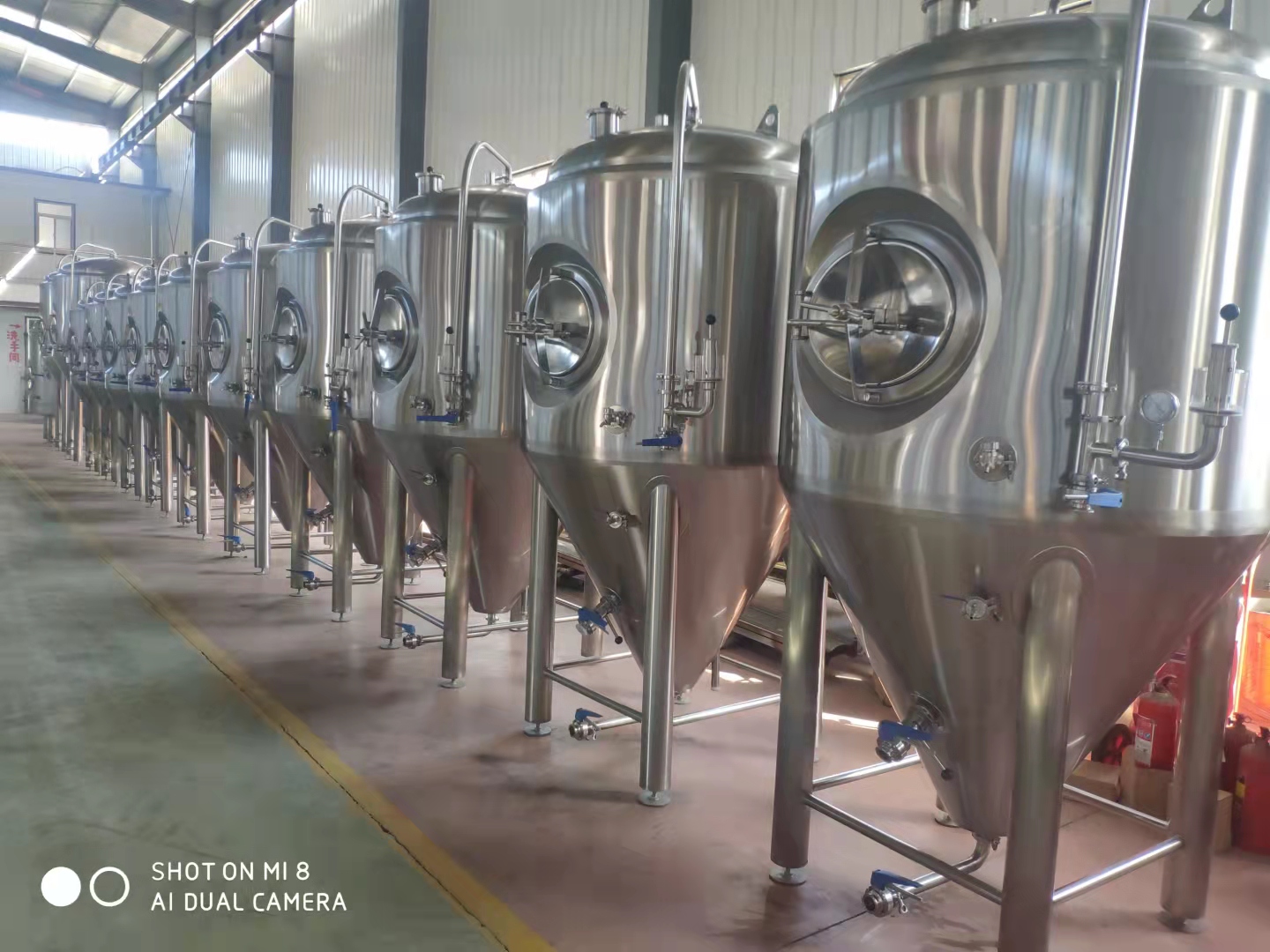

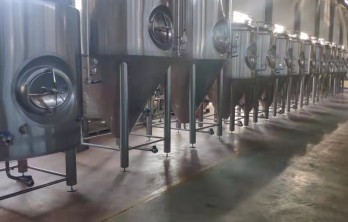

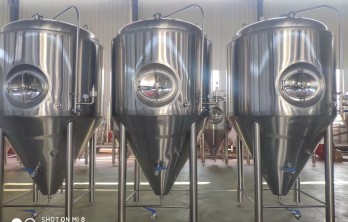

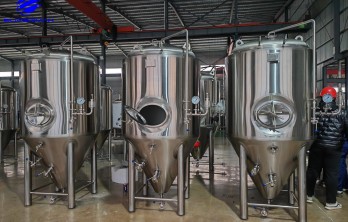

▷1000L double wall conical Fermenter

Supermax stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as pressure relief valve, CIP cleaning jet, sanitary sample valve, manhole,etc. The design of Tiantai fermenter is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.

▷Specification:

1. The main material is the SUS304 stainless steel;

 2.Standard model:100L-10000L;

3.Top is stainless steel dished head, bottom is 60°conical design, easy to discharge yeast, 100% TIG welding, clean and polish;

4. Design pressure of 0.2MPa, the test pressure 0.4 MPa;

5. 3-4 stainless steel leg, height and level can be adjusted;

6. Inner jacket thickness 3mm, insulation is Polyurethane (PU),thickness 60-100mm, outer jacket thickness 2mm;Cleaning the inner surfaces, polished to 0.4um;

7. Configure the appropriate standard models sanitary clamp type connector according the tank;

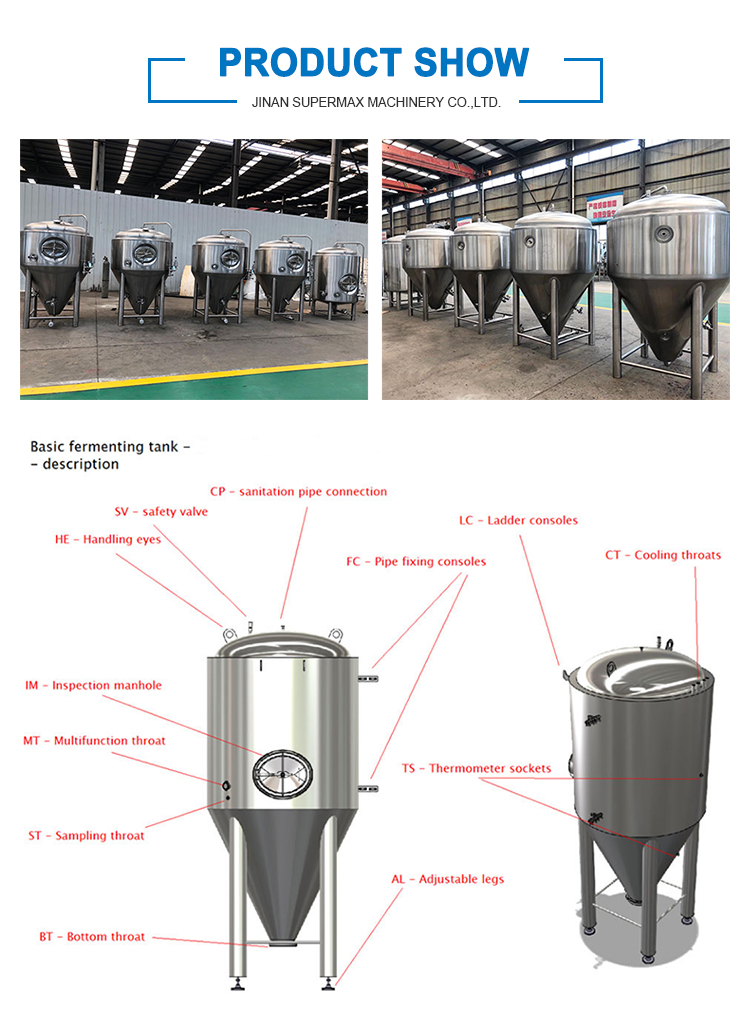

8. Configuring the vacuum valve/pressure relief valve, pressure gauge, thermometer, sampling valves, lifting lugs, side or top manhole, 360 °CIP ball;

9. Double glycol inlet and outlet, dimple jacket for cooling;

10. Racking arm for beer outlet;

11. Standard clamp-type hops adding port

 12.Electronic thermometer sensor connector.

▷Standard Configuration:

Function wort Fermentation or maturation
Tank Capacity: 1000L (+25% Headspace minimum)

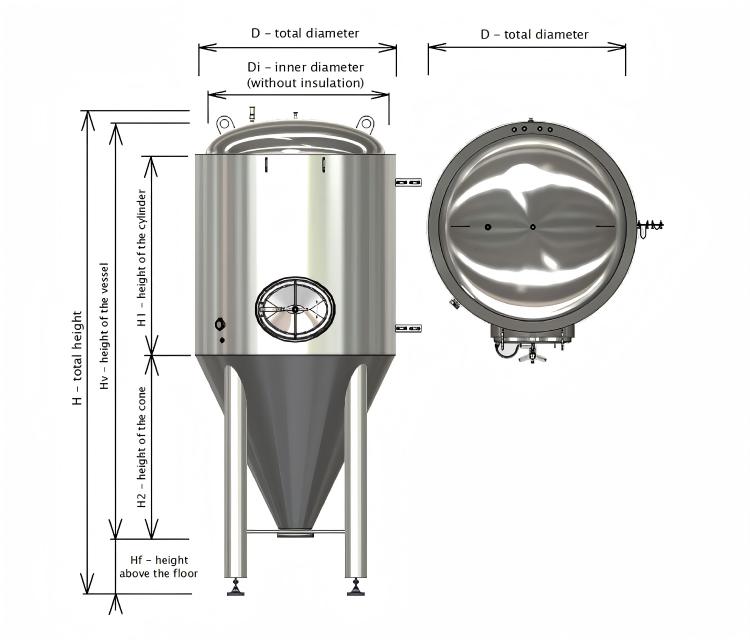

Dimension: 1210mmx2550mm
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm

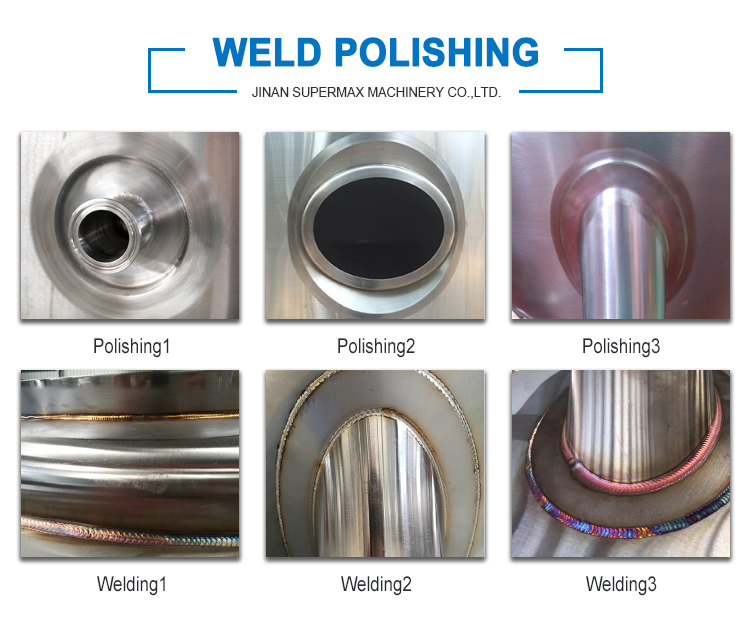

100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 mm without dead corner
Insulation: Polyurethane; TH=80mm
Glycol Jacket: Dimpled plate on cone and side
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Dished head and 60 degree cone bottom
Sanitary side mounted manway
CIP arm with 360° coverage CIP spraying ball
CO2 blow-off arm with butterfly valve
Full sanitary sampling valve
Mechanical relief valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Complete valves, fittings and all parts
Dry hopping port with solid end cap
Level tube for special request
Carbonation port and stone for special request
