Introduction

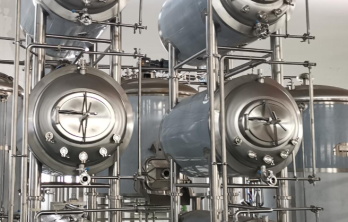

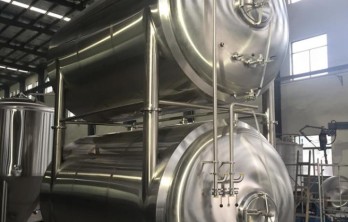

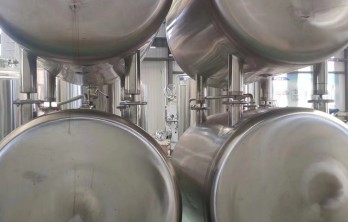

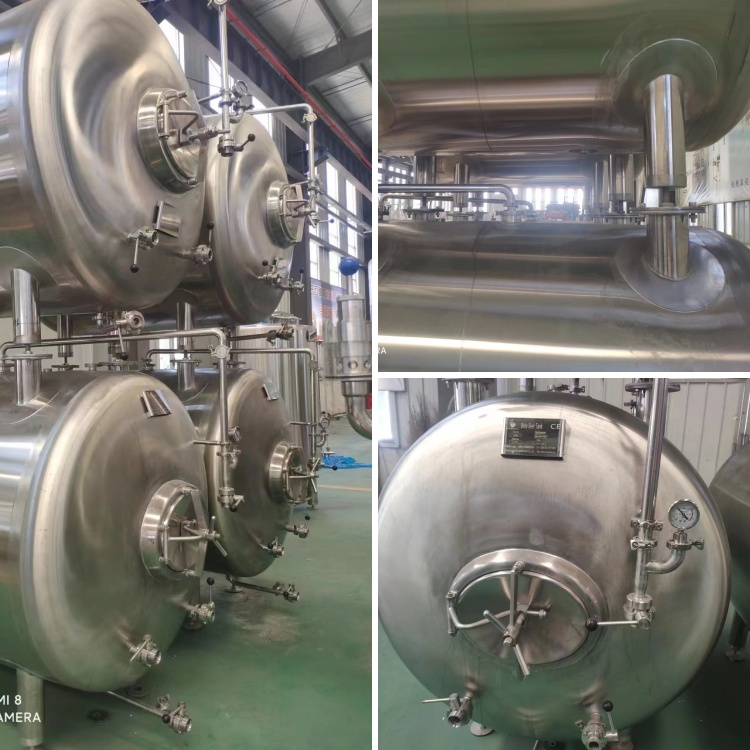

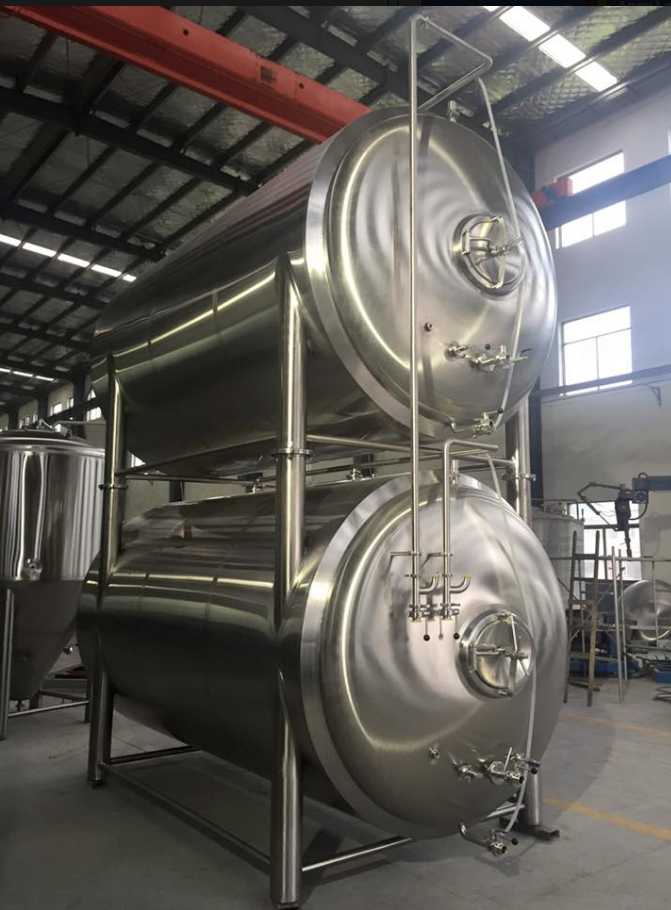

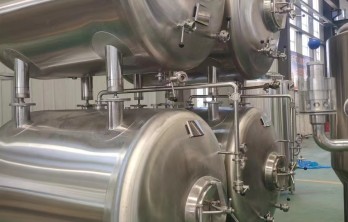

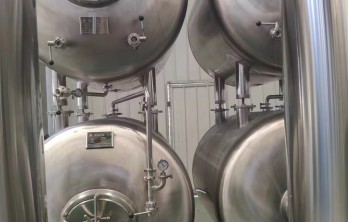

10BBL horizontal bright tanks are generally used in some brewerieswith limited space and height. To save some space, bright tanks canbe stacked. You can usually see this type of bright tank in Europe dueto the old building and height. its advantage is that it saves space,and a larger number of brite tanks can be placed in the same area.But its shortcomings are also very obvious. Tanks that are too low ortoo high are difficult to clean and maintain.
▷Configuration:
Function:Beer maturation/conditioning/serving/filtered beer receiving
Tank Capacity: 10BBL (+20% Headspace minimum)
Dimention: 1360mmx2100mm
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 mm without dead corner
Insulation: Polyurethane; TH=80mm
Glycol Jacket: Dimple plate on side wall
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Dished head and bottom
Sanitary side mounted manway
CIP arm with 360° coverage CIP spraying ball
Full sanitary sampling valve
Mechanical relief valve 2 bar on CIP arm
Carbonation port with stone
Shockproof pressure gauge on CIP arm
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
4pcs completely SUS304 heavy duty legs with leveling pad
Sanitary level tube with stainless steel ball valves
Complete valves, fittings and all parts
▷Advantages:
• The fermentation tank is eguipped with lifting ears, which is convenient for hoisting equipment in place. With a rotating elbow and racking tam for beer delivery, it is convenient and flexible to deliver beer.* An elliptica guard plate is added at the junction of the outriggers and the lower cone refrigerant inlet pipe and the lower coneoutsourcina to ensure more precise machining accuracy.
• All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.
• The clamp is installed at the connection between the material port and the bottom of the tank, which can be rotated at will, which is convenient for customers to operate.• Outsourcing of the bottom of the Bright tank is made of finished products to ensure that the tank body has a beautiful appearance, strong and durable.• All bright tanks are equipped with carbon stone for CO2.• Uses a shadowless manway, which is easy to clean. The top manhole can be designed according to the customer’s fermentation process and brewing beer.• The headspace is large, the total volume does not include the volume of the top head.• The cooling jackets are designed on both top of the cone and the bottom of the cylinder, and the cooling area is large enough.• Equipped with safety device, positive and negative pressure opening function.• The fermentation tank is equipped with a special ladder for easy operation.• Both exchanging type and copper piping cooling tank are available.• According to a different country and brewing features, design different cooling solutions.• To meet the normal use of customers and without causing economic waste to customers, we will configure reasonable IWT/CLT and refrigerators according to the actual needs of customers.
