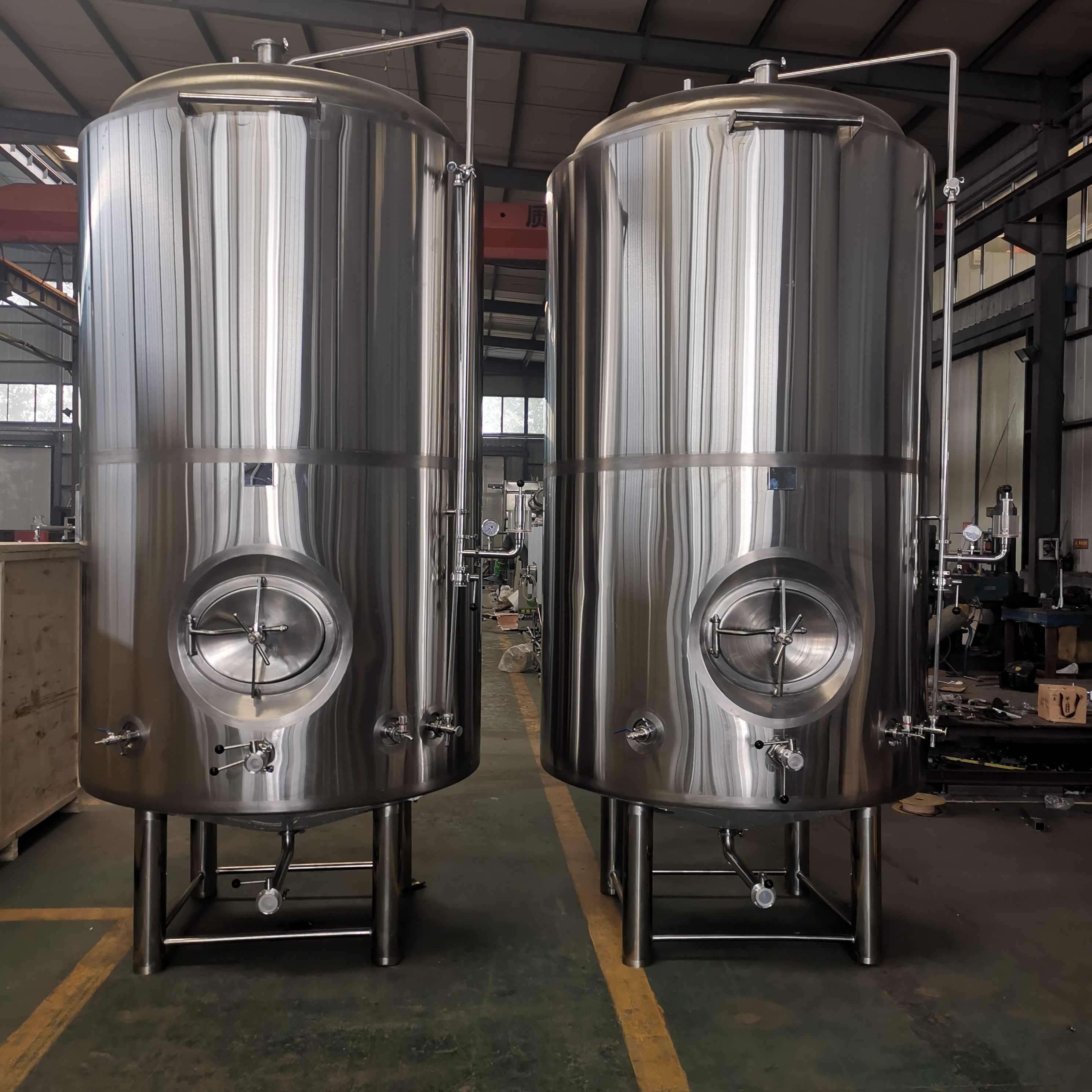

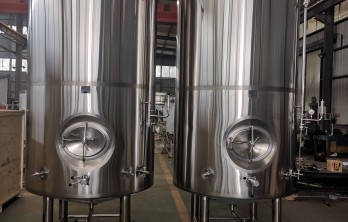

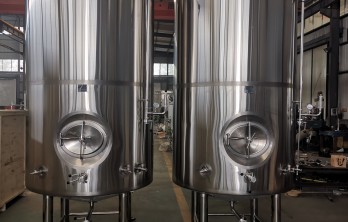

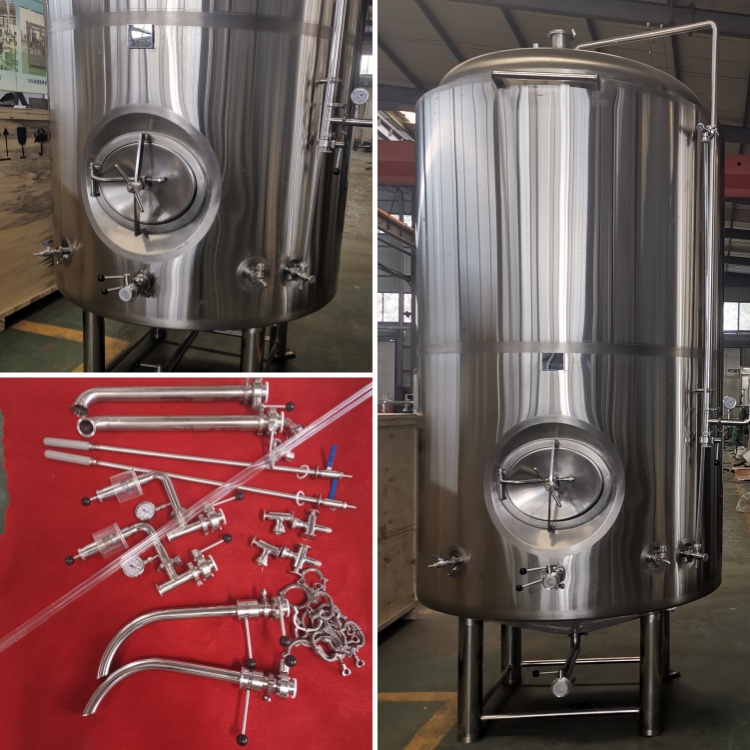

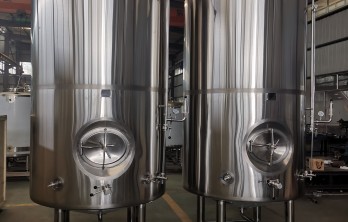

Our high-quality 4000L Vertical beer brite tanks, designed to meet the needs of larger breweries. With a capacity of 20BBL, these tanks are ideal for settling suspended solids before the filling process, ensuring that the sake is clear and of the highest quality.

Our 4000L sake tanks are crafted with premium materials and advanced technology, guaranteeing durability, efficiency, and consistent performance. Whether you are a large-scale brewery or a growing operation, these tanks are engineered to meet the demands of high-volume production

▷Configuration:
Function:Beer maturation/conditioning/serving/filtered beer receiving
Dimention: 1560mmx2800mm
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 mm without dead corner
Insulation: Polyurethane; TH=80mm
Glycol Jacket: Dimple plate on side wall
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Dished head and bottom

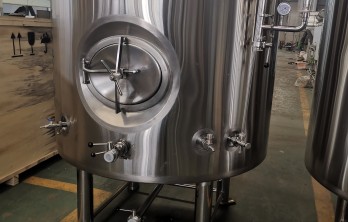

Sanitary side mounted manway
CIP arm with 360° coverage CIP spraying ball
Full sanitary sampling valve
Mechanical relief valve 2 bar on CIP arm
Carbonation port with stone
Shockproof pressure gauge on CIP arm
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
4pcs completely SUS304 heavy duty legs with leveling pad
Sanitary level tube with stainless steel ball valves

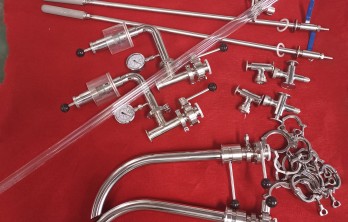

Complete valves, fittings and all parts
