▷300L Bar beer plant

300L beer brew equipment of German style 2vessels is popular in Euro which are suitable for pub,bar, restaurants,hotels and shopping centers. Supermax turnkey excellent brewery design solution includes grain miller, brewhouse, brewing tank heating machine, Heat exchanger, fermentation tank, serving tank, cooling chiller, controller and CIP cleaning.

▷Specifications

Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;

▷Introduction

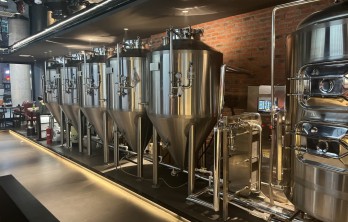

300L Bar beer plant produced by us is a set of technological equipment for the production of "live" and filtered beer. Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste. If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels, tourist and shopping centers. Interpreter may be faced with polished brass, copper besides stainless steel. Also, the microbrewery is placed behind a glass partition that allows visitors to observe the process of making beer. This is an excellent design solution interior and a powerful marketing tool.
Most installation in restaurants, bars and hotels used microbrewery with a capacity from 200 to 1000 L. A network of restaurants uses equipment with higher capacity. Tiantai microbreweries are installing at the customer's company turn-key. To release a less than 200 L of beer per day is unprofitable, so the minimum performance of our equipment is 200L.

▷Component

1.SUS304 150kg/h Grain Miller

2.300L Mash tun/ kettle tank

3.300L Lauter/whilrpool tank

4.5m² Plate heating exchanger

5.Food grade wort Hose and work platform

6.15L Yeast adding tank

7.300L Beer Fermentation tanks or 300L Beer Fermentation tanks

8.600L Bright Beer tanks or 600L Bright Beer tanks

9.3HP Glycol Chiller

10.600 L Clycol tank(Ice water tank)

11.50L CIP cart

12.Control cabinet with touch screen, Siemens, ABB,Schneider international brand electric parts.13.semi-automatic Bottle filler and capper machine,cans filler and seal machine , keg fller and washer machine,(Optional)14.Heating ways: Steam heating, electric heat coil heating, direct fire heating.

▷Configuration
1. Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional

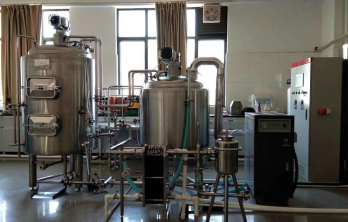

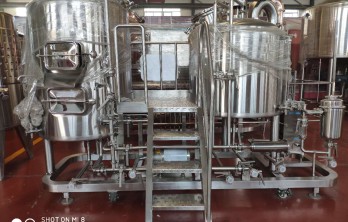

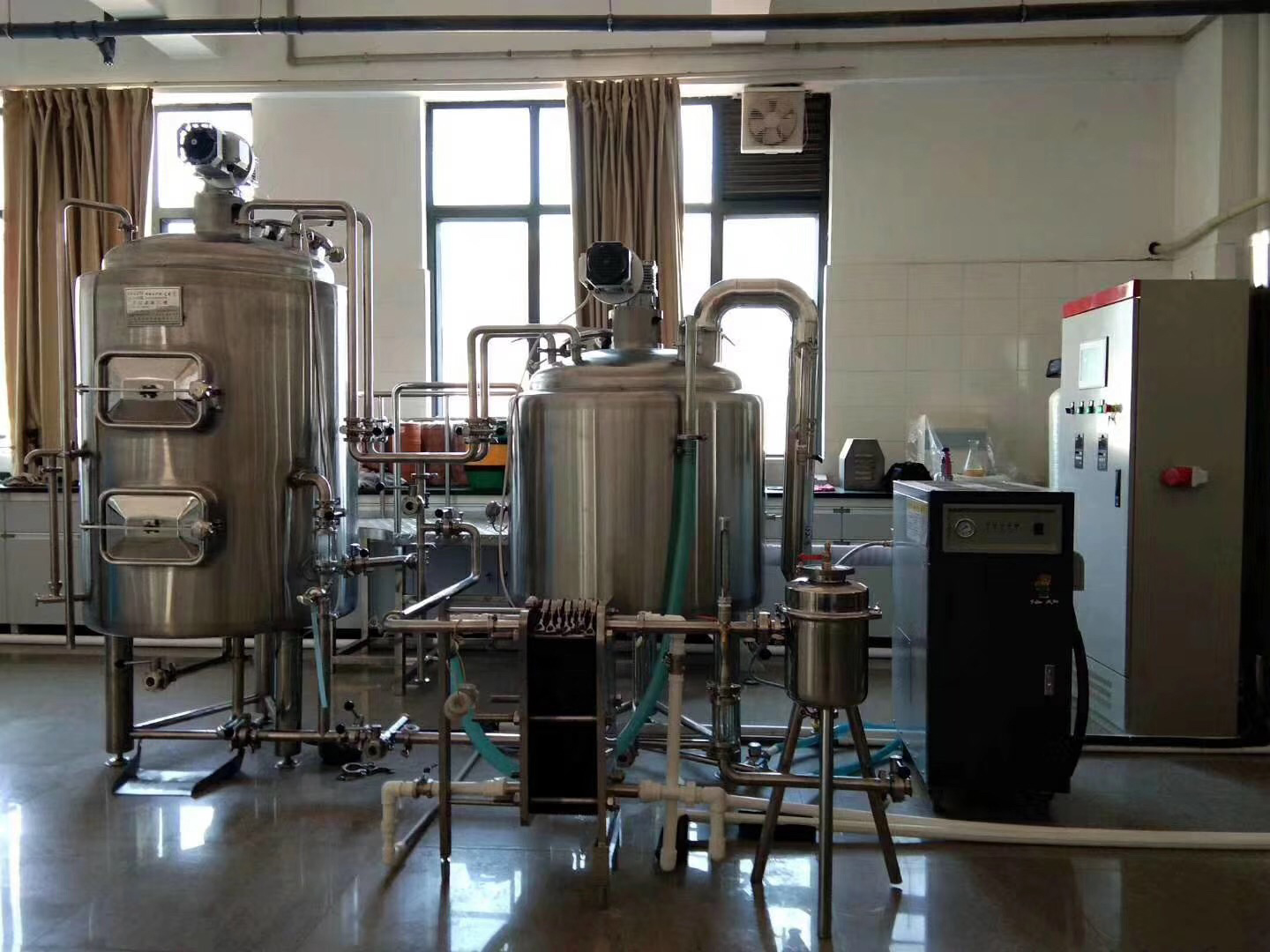

2. 300L Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings

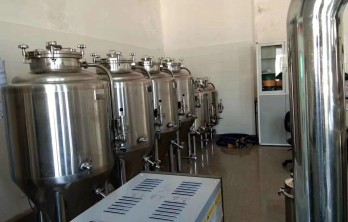

3. 300L or 600L Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included

4. Beer Filter Unit(optional)
In restaurant or bar, beers are always served as craft beer without filtration

5. 300L or 600L Bright Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included

6. Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included

7. Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request

8. Beer Dispense
Beer dispensing columns and faucets for directly beer service
Keg filling and rinsing machine
Manually bottling machines for self consumption

9. Other Facilities
Portable CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor
