▷3-Vessel+HWT Main Features：

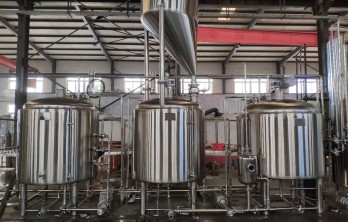

10BBL 3Vessels Brewhouse mash tun+lauter tank+ kettle/whirlpool tank with Hot water tank for brewery project
A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example: Mash tun, Lauter tank and kettle/whirlpool tank+Hot water tank
▷Advantages

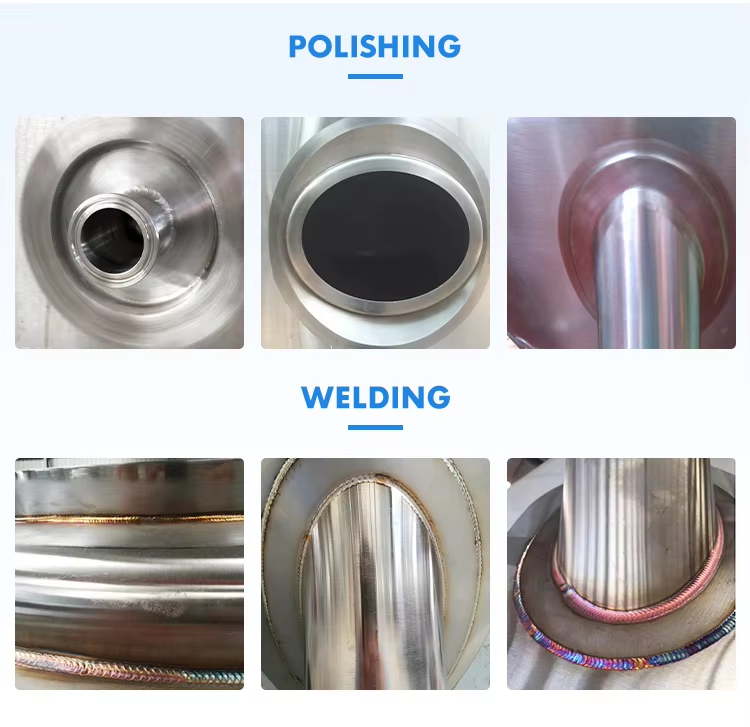

1) All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts;
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
4) Closed grant system improves runoff performance;
5) Variable speed drives on pumps, motors and agitators;
6) Stainless steel work platform for integrity, no rusting and long life;
▷10BBL Complete Craft Beer Brewing System
1) All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts;
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
4) Closed grant system improves runoff performance;
5) Variable speed drives on pumps, motors and agitators;
6) Stainless steel work platform for integrity, no rusting and long life;
▷Configuration
No. Name Components Specification 1 Grain Milling Unit Rolling Miller Stainless steel, Double roller, rollers distance adjustable Grain auger Conveys grist from malt mill to grist case; Inside stainless screw, outside PPR protection tube; Associated motor with frequency conversion SS grist hopper Stainless steel304 2 Brewhouse unit Mash/Lauter tun Grain rake with VFD Laser cutting V-wire False Bottom Easy clean and detachable sparging spray ring Multihole wort collect ring, anti-rinser With side grain out door Tank light assemblies Mash hydration assembly Rotary CIP spray balls Level sight tube Kettle/Whirlpool Tun Steam Jacket /direct gas fired heating/electric heating Steam vent with condensate ring for kettle stack Tank light assemblies Rotary CIP spray balls Tangential whirlpool entry Level sight tube Wort pump Sanitary wort pumps with variable speed control Working platform OSHA compliant platforms with safety railings & stairs, Cellar package with brewers hoses, valves and fittings Hot liquor tank Steam Jacket heating/direct gas fired heating/electric heating Sight gauge for water level With SS HLT pump with variable speed control Heat exchanger SUS304/316 plate, with wort aeration system 3 Fermentation unit Fermenter Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, #4 finish Fully welded exterior shell 60 degree cone bottom, with an average of 25% head space Rotating racking port Glycol cooling jacket on cone and bottom Side or top manway CIP arm and CO2 blow off arm for maximum tank space utilization Germany import Kieselmann Mechanical relief valve Shockproof pressure gauge CIP arm and spray ball Dry hop port 4-6” Carbonation stone Inoxpa butterfly valves, sample valve, 2” pressure vacuum relief valve RTD Probe Tension braces on legs Sanitary tri-clamp connections 4 Bright beer tank Bright beer tank Inoxpa butterfly valves, Perlick sample valve Micromatic level gauge, PVRV Clamps and gaskets, pressure gauge, carb stone Stainless steel legs with stainless leveling footpads Interior shell: 304 stainless steel, thickness 3mm Exterior shell: 304 stainless steel, thickness 2mm Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, #4 finish Fully welded exterior shell Dished top and bottom, with an average of 15%-20% head space Carbonation port Side or top manway door, Dimple jacket cooling jackets Polyurethane insulation Level gauge connections CIP arm and spray ball Sanitary tri-clamp connections 5 Glycol Chilling Unit Glycol Water Tank Insulated conical top and sloped bottom Liquid level sight tube for water level Rotating CIP spray ball Cold Water Tank Cooling jacket on tank with PU insulation Liquid level sight tube for water level Rotating CIP spray ball Glycol Chiller Assembly unit, wind cooling, environmental refrigerant: R404a, compressors and electrical components meet UL/cUL/CE certified 6 Control unit Brewing and fermentation process Controlling Manual button control panel or PLC control with touch screen for special, control panel with RTD & solenoid valves 7 CIP Caustic Tank electric heating element inside Sterilization Tank Stainless steel 304
