10BBL Mash/lauer+ Kettle/whirlpool tank+ Hot water tank + fermentation tanks

10BBL Craft brewery equipment is widely used in medium breweries and beer pubs. It can brew pale lager, amber lager, dark lager, ale and etc at proper temperature with different raw material.

▷Advantages ：

1.High cost performance.

2.Good abrasion resistance materialcopper beer equipment.

3.We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.

4.Polishing accuracy up to Ra0.4μ m .

5. Strict tank pressure test.

6. Energy conservation and pollution emissions.

▷Configuration：

● Regular model:1000L (25% excess capacity)

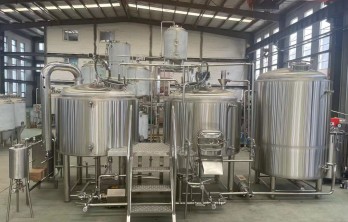

● 1000L Brewhouse consists of mash tun, lauter tank, kettle tank and whirlpool tank.

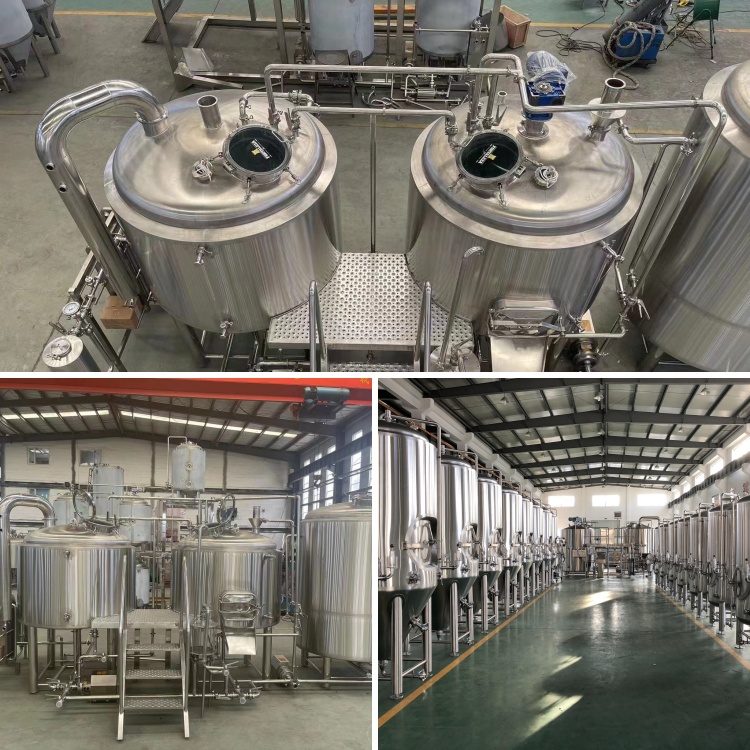

● Two Vessles:(Mash/latuer tank & Kettle/whirlpool tank)+Hot water tank

● Steam heating(electrical heating &direct fired heatingis optional for small system )

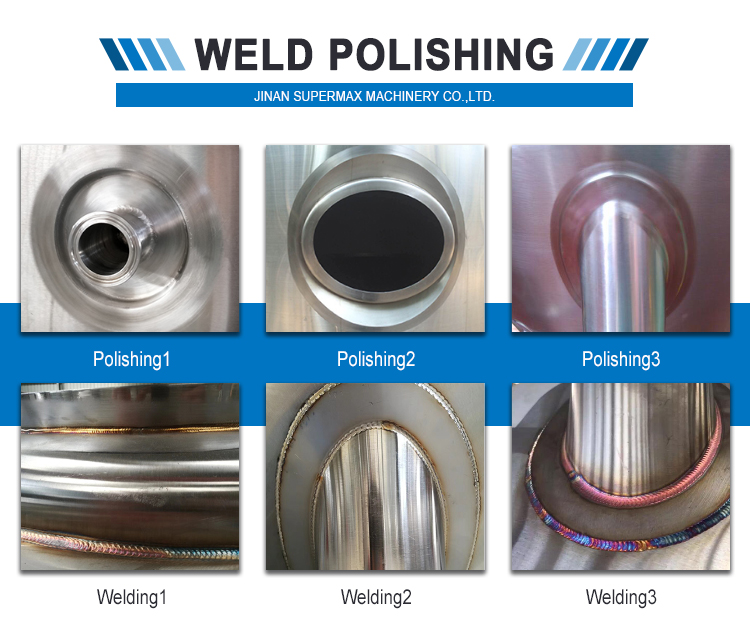

● All parts of the equipment are made of high quality stainless steel SUS 304 with argon arc welding (Tig welding)

● Insulation: ( PU or Rock wool)

● Lauter tun configures combi-grain raking device and milling sieve plate.

● Mash/ketlle tank is with stirrer device

● Electronic thermometer sensors.

● Spraying ball (Detachable）

● Heating with dimple Jacket ( or electric heating )and stirrer device ensures temperature rise rate and improve

overall system efficiency with avoiding coking.

● The tangent whirlpool design according to the heat concretion subsidence characteristics.

● PLC design of control program meet demand of various process of craft beer.

● Options: Automatic grain removing device (Frequency converting control) bottom door of grain removal.

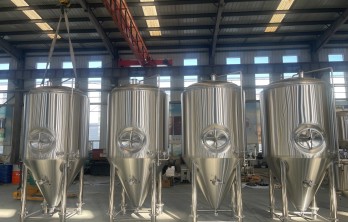

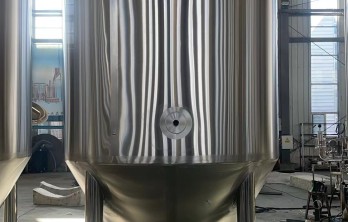

▷Fermentation  & Brite Beer Tanks

● The main material: the SUS304 stainless steel;

● Standard model:1000L or 2000L (25% excess capacity);

● Top is stainless steel dished head, bottom is 60°conical design, easy to discharge yeast, 100% TIG welding, clean and polish;

● Design pressure of 0.2MPa, the test pressure 0.4 MPa;

● 3-4 stainless steel leg, height and level can be adjusted;

● Inner jacket thickness 3mm, insulation is Polyurethane (PU),thickness 60-100mm, outer jacket thickness 2mm;Cleaning the inner surfaces, polished to 0.4um;

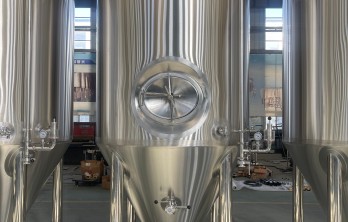

● Configuring the vacuum valve/pressure relief valve, pressure gauge, thermometer, sampling valves, lifting lugs, side or top manhole, 360 °CIP ball;

● Double glycol inlet and outlet, dimple jacket for cooling;

● Racking arm for beer outlet;

● Standard clamp-type hops adding port;

● Electronic thermometer sensor connector;
